4/4.5/5 Ton Internal Combustion Forklift Hangcha Durable Fuel Powered Fork Truck for Factory & Logistics Operation

Description

Basic Info.

Model NO.	CPCD50-A2XG53
Type	Diesel Forklift
Load Capacity	5000kg
Load center	500mm
Condition	New
Transmission	Auto
Transport Package	Nude Packing
Trademark	HANGCHA
HS Code	8427209000
Cab Location	Not Adjustable
Power	Diesel Engine
Fuel	Diesel
Lift height	3000-7000mm
Tyre	Pneumatic
Engine	Xinchai
Specification	321514902350
Origin	China
Production Capacity	50000

Product Description

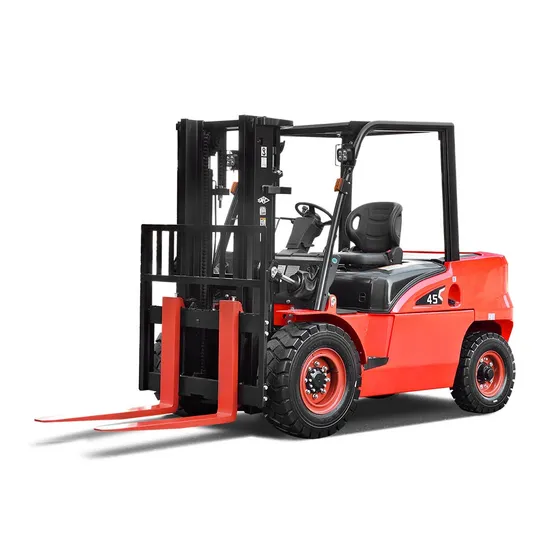

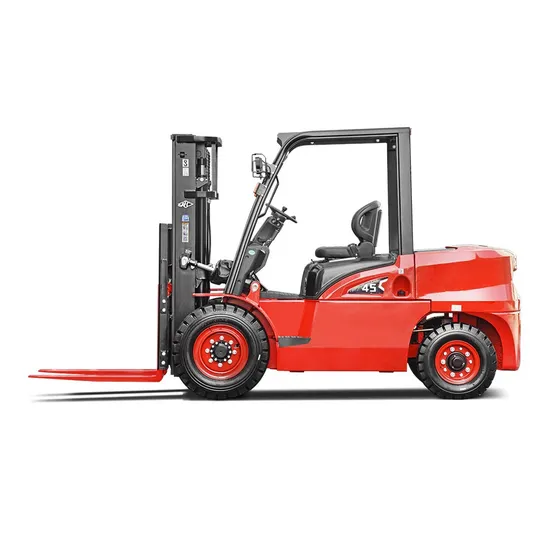

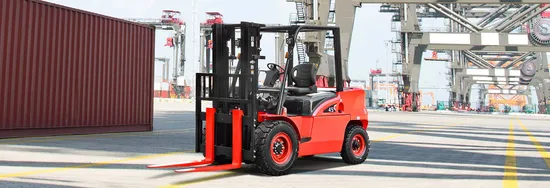

HANGCHA A2 Series Internal Combustion Forklift with capacities of 4,000 to 5,000kg

The A2 series is a series of forklifts of Hangcha based on the advanced technology through comprehensive upgrading of the

exterior design, green and energy eciency, safety and reliability, comfort and convenience. The forklifts have greatly improved

performance, capable of meeting your all-round needs.
We have many optional engines and multiple lifting mast height available and different kinds of forklift attachments .Hope to better meet your needs!

Product Parameters

A2 Series Internal Combustion Forklift Speciﬁcation
Distinguishing mark	1.1	Manufacturer		HANGCHA GROUP CO.,LTD.
	1.2	Manufacturer’s type designation		CPCD40-A2G53	CPCD45-A2G53	CPCD50-A2XG53
	1.3	Drive: electric (battery or mains), diesel, petrol, fuel gas		Diesel	Diesel	Diesel
	1.4	Operator type: hand, pedestrian, standing, seated, order-picker		Seated	Seated	Seated
	1.5	Rated capacity/rated load	Q (kg)	4000	4500	5000
	1.6	Load centre distance	c (mm)	500	500	500
	1.8	Load distance, centre of drive axle to fork	x (mm)	550	550	555
	1.9	Wheelbase	y (mm)	2100	2100	2100
Weight	2.1	Service Weight	kg	5970	6220	6500
	2.2	Axle loading, laden front/rear	kg	8640/1330	9450/1270	10330/1170
	2.3	Axle loading, unladen front/rear	kg	2670/3300	2720/3500	2800/3700
Tyres, chassis	3.1	Tyres: solid rubber, superelastic, pneumatic, polyurethane		Pneumatic	Pneumatic	Pneumatic
	3.2	Tyre size, front		8.25-15-14PR/2	300-15-20RP/2	300-15-20RP/2
	3.3	Tyre size, rear		7.00-12-12PR	7.00-12-12PR	7.00-12-12PR
	3.5	Wheels, number front / rear (x = driven wheels)		2×/2	2×/2	2×/2
	3.6	Tread, front	b10 (mm)	1160	1190	1190
	3.7	Tread, rear	b11 (mm)	1130	1130	1130
Dimensions	4.1	Tilt of mast/fork carriage forward/backward	α/β(°)	6/12	6/12	6/12
	4.2	Height, mast lowered	h1 (mm)	2245	2245	2245
	4.3	Free lift	h2 (mm)	160	160	160
	4.4	Lift	h3 (mm)	3000	3000	3000
	4.5	Height, mast extended	h4 (mm)	4170	4170	4380
	4.7	Height of overhead guard	h6 (mm)	2350	2350	2350
	4.8	Seat height relating to SIP	h7 (mm)	1302	1302	1302
	4.12	Coupling height	h10 (mm)	520	520	520
	4.19	Overall length	l1 (mm)	4260	4280	4285
	4.20	Length to face of forks	l2 (mm)	3190	3210	3215
	4.21	Overall width	b1(mm)	1420	1490	1490
	4.22	Fork dimensions	s/e/l (mm)	50×122×1070	50×150×1070	50×150×1070
	4.23	Fork carriage DIN 15 173 — ISO 2328, class/type A,B		3/A	3/A	4/A
	4.24	Fork-carriage width	b3 (mm)	1350	1350	1350
	4.25	Distance between fork-arms	b5 (mm)	300-1250	300-1250	300-1250
	4.31	Ground clearance, laden, below mast	m1 (mm)	150	150	150
	4.32	Ground clearance, centre of wheelbase	m2 (mm)	230	230	230
	4.34.1	Aisle width for pallets 1000 x 1200 crossways	Ast (mm)	4530	4570	4575
	4.34.2	Aisle width for pallets 800 x 1200 lengthways	Ast (mm)	4730	4770	4775
	4.35	Turning radius	Wa (mm)	2780	2820	2820
	4.36	Minimum pivoting point distance	b13 (mm)	863	863	863
Performance data	5.1	Travel speed, laden/unladen	km/h	24/25	24/25	24/25
	5.2	Lift speed, laden/unladen	m/s	0.55/0.58	0.55/0.58	0.48/0.51
	5.3	Lowering speed, laden/unladen	m/s	0.44/0.46	0.44/0.46	0.44/0.46
	5.5	Drawbar pull, laden/unladen	N	39100/20000	39100/20000	39100/20000
	5.7	Gradeability, laden/unladen	%	25/20	23/20	20/20
	5.10	Service brake		Hydraulic	Hydraulic	Hydraulic
		Parking brake		Mechnical	Mechnical	Mechnical
Combustion- engine	7.1	Engine manufacturer/type		Xinchai4D35ZG31-003	Xinchai4D35ZG31-003	Xinchai4D35ZG31-003
	7.2	Engine power	kW	60	60	60
	7.3	Rated speed	r/min	2200	2200	2200
	7.4	Number of cylinders/displacement		4/3470	4/3470	4/3470
	7.9	Vehicle electrical system voltage	V	24	24	24
	7.10	Battery voltage/nominal capacity	V/Ah	2-12/60	2-12/60	2-12/60
		Rated torque	N·m/r/min	300/1600~1800	300/1600~1800	300/1600~1800
		Transmissions Manufacturer		China	China	China
		Transmissions Type		Powershift	Powershift	Powershift
		Stage FWD/RVS		2/1	2/1	2/1
Addition data	10.1	Operating pressure for attachments	Mpa	18	18	18
	10.3	Hydraulic Tank – capacity (drain & reﬁll)	liter	80	80	80
	10.4	Fuel tank capacity	liter	100	100	100
