4-5 Ton 80V Lithium Electric Forklift Hangcha, Heavy Duty, Shock Absorption Design, Low Noise & Eco-Friendly Industrial Lifter for Logistics Operations

Description

Basic Info.

Model NO.	CPD45-AC6
Type	Electric Forklift
Load Capacity	1T – 5T
Load center	500mm
Condition	New
Tyres	Pneumatic
Specification	292714402310
Origin	China
Production Capacity	15000

Cab Location	Not Adjustable
Power	AC Motor
Fuel	Electric
Lift height	2500-6000mm
Battery Capacity	80V/700ah
Transport Package	Export Packing
Trademark	HANGCHA
HS Code	8427109000

Product Description

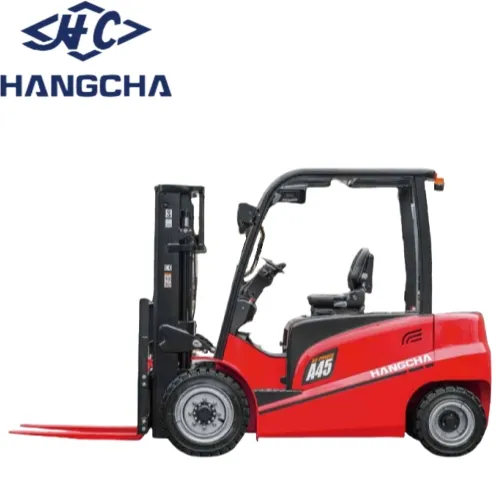

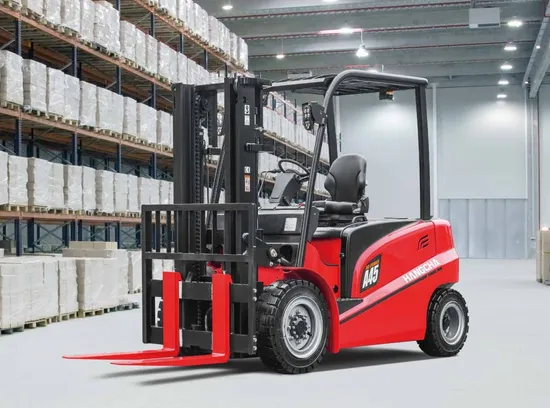

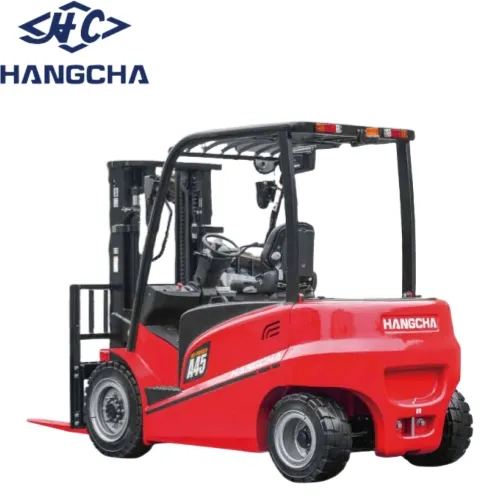

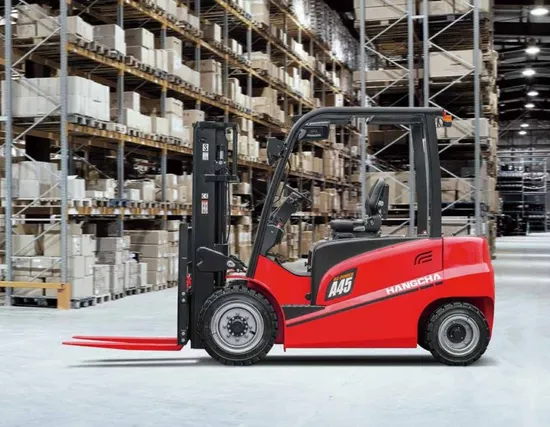

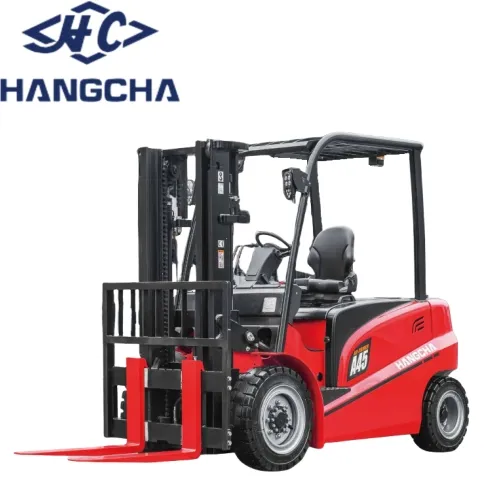

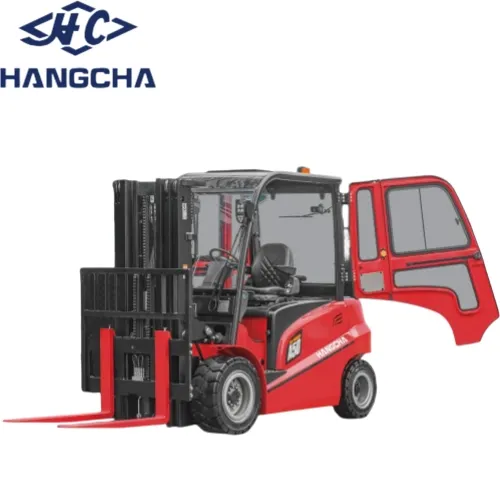

Hangcha A Series Electric Forklift Truck with capacities of 4t/4.5t/4.99t
The fully-openable battery cover simplifies maintenance, while the easy-to-open airtight cover plate ensures convenient debugging and upkeep of the electric control system-all while protecting against rain and dust intrusion. A brushless, maintenance-free AC drive motor significantly cuts operational costs, and the optional side-roll-out battery system enables fast, efficient, and safe battery replacement, making it ideal for continuous work environments.

Product Parameters

Distinguishing mark	1.1	Manufacturer (abbreviation)		HANGCHA GROUP CO.LTD.
	1.2	Manufacturers type designation		CPD40-AC6*	CPD45-AC6*	CPD50-AC6*
	1.3	Drive:electric(battery or mains),diesel,petrol,fuel gas		electric	electric	electric
	1.4	Operator type:hand,pedestrian,standing,seated,order-picker		seated	seated	seated
	1.5	Load capacity/rated load	Q(kg)	4000	4500	4990
	1.6	Load centre distance	c(mm)	500	500	500
	1.8	Load distance,centre of drive axle to fork	×(mm)	550	550	555
	1.9	Wheelbase	y(mm)	1970	1970	1970
Weight	2.1	Service Weight	kg	6700	6950	7220
	2.2	Axle loading,laden front/rear	kg	9530/1170	10250/1200	10980/1240
	2.3	Axle loading,unladen front/rear	kg	3290/3410	3330/3620	3335/3885
Tyres, chassis	3.1	Tyres:solid rubber,superelastic,pneumatic,polyurethane		pneumatic	pneumatic	pneumatic
	3.2	Tyre size,front		250-15	250-15	28×12.5-15
	3.3	Tyre size,rear		23×10-12	23×10-12	23×10-12
	3.5	Wheels,number front rear(x=driven wheels)		2×/2	2x/2	2×/2
	3.6	Tread,front	b1o(mm)	1150	1150	1166
	3.7	Tread,rear	b11(mm)	1175	1175	1175
Dimensions	4.1	Tilt of mast/fork carriage forward/backward	Grad	6/11	6/11	6/11
	4.2	Height,mast lowered	hi(mm)	2185	2185	2185
	4.3	Free lift	hz(mm)	150	150	150
	4.4	Lift	h3(mm)	3000	3000	3000
	4.5	Height,mast extended	h4(mm)	4170	4170	4170
	4.7	Height of overhead guard STD.	h6(mm)	2310	2310	2310
	4.8	Seat height/stand height	h (mm)	1240	1240	1240
	4.12	Coupling height	h1o(mm)	350	350	350
	4.19	Overall length	li(mm)	3997	3997	4042
	4.20	Length to face of forks	Iz(mm)	2927	2927	2972
	4.21	Overall width	b1(mm)	1440	1440	1470
	4.22	Fork dimensions	s/e/l (mm)	50/122/1070	50/150/1070	55/150/1070
	4.23	Fork carriage DIN15173—ISO 2328,class/type A,B		IS023283A	IS023283A	IS023283A
	4.24	Fork-carriage width	b3(mm)	1250	1250	1250
	4.25	Distance between fork-arms	b5(mm)	310/1250	310/1250	310/1250
	4.31	Ground clearance,laden,below mast	m1(mm)	110	110	110
	4.32	Ground clearance,centre of wheelbase	mz(mm)	150	150	150
	4.33	Aisle width for pallets 1000×1200 crossways	Ast(mm)	4390	4390	4430
	4.34	Aisle width for pallets 800×1200 crossways	Ast(mm)	4590	4590	4630
	4.35	Turning radius	Wa(mm)	2640	2640	2675
	4.36	Internal turning radius	b13(mm)	810	810	810
Performance Data	5.1	Travel speed,laden/unladen	km/h	14/14	13.5/14	13/13.5
	5.2	Lift speed,laden/unladen	mm/s	270/430	260/420	250/400
	5.3	Lowering speed,laden/unladen	mm/s	430/480	440/480	440/480
	5.5	Drawbar pull,laden/unladen	N	16400/17000	15600/16200	15200/15600
	5.6	Max.Drawbar pull,laden/unladen	N	24000	26000	27000
	5.7	Gradeability,laden/unladen	%	14.5/15.5	14/15	13/14
	5.8	Max.gradeability,laden/unladen	%	16/28	15/27	14/25
	5.9	Acceleration time,laden/unladen (0-10m)	S	5.2/5.4	5.3/5.5	5.4/5.6
	5.10	Service brake		Hydraulic	Hydraulic	Hydraulic
	5.11	Parking brake		electric	electric	electric
Electric- engine	6.1	Drive motor rating S260 min	kW	16.6AC	16.6 AC	16.6 AC
	6.2	Lift motor rating at S315%	kW	25.4AC	25.4AC	25.4 AC
	6.3	Battery acc.to DIN 43531/35/36A,B,C,no		DIN 43536A	DIN43536A	DIN 43536A
	6.4	Battery voltage,nominal capacity K5	V/Ah	80/700	80/700	80/700
	6.5	Battery weight	kg	1863	1863	1863
	6.6	Battery dimensions	I/b/h(mm)	1028×855×784	1028×855×784	1028×855×784
	6.7	Energy consumption acc.to VDI cycle	kWh/h	12.5	13	13.5
	6.8	Min.battery weight	kg	1800	1800	1800
	6.9	Max.battery weight	kg	1950	1950	1950
Addition data	8.1	Type of drive control		MOSFET/AC	MOSFET/AC	MOSFET/AC
		Manufacturer		CURTIS	CURTIS	CURTIS
	8.2	Operating pressure for attachments	bar	185	185	185
	8.3	Oil volume for attachments	I/min	65	65	65
	8.4	Sound level at the driver’s ear according to EN/DIN 12053	dB(A)	75	75	76
	8.5	Towing coupling,type DIN		φ24 Pin	φ24 Pin	φ24 Pin
	9.1	Hydraulic Tank-capacity(drain &refill)	liter	46	46	46
