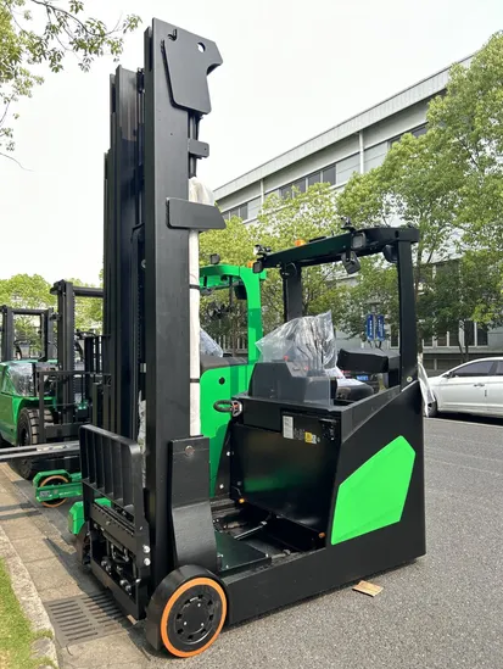

Economical Export Standard Hangcha Cqd16-AC5h AC Battery Reach Truck Durable PU Solid Tire Low Maintenance for Warehouse Distributor Bulk Order

Description

Basic Info.

Model NO.	CQD16-AC5H	Cab Location	Not Adjustable
Type	Reach Forklift	Power	AC Motor
Load Capacity	1T – 5T	Fuel	Electric
Load center	500mm	Lift height	5500mm-12500mm
Condition	New	Color	Red/Yellow/Green
Transport Package	Nude Packing	Specification	143912702315
Trademark	HANGCHA	Origin	China
HS Code	8427109000	Production Capacity	15000

Product Description

A SERIES PREMIUM VERSION REACH TRUCK

After several years of design, development, and manufacturing, Hangcha launched a new product lately -the A Series Premium Version Reach Truck: CQD12/14/16/20-AD2H. This truck is mainly used in multi-level warehouse.

CQD20-AD2H rated load capacity is 2 tons, maximum lifting height is 12.5m, and the load capacity can reach 1100kg at the maximum lifting height. Its technical parameters and configuration are close to that of similar products of international manufacturers including Crown, Linde, Jungheinrich, and Hyster. This product (A series premium version reach truck) together with standard reach truck constitute the entire family of A Series reach truck of Hangcha. These products supplement with each other in rated tonnage, cover different prices together, and can satisfy different demands in prices, functions, and configuration from various users.

Product Parameters

Distinguishing mark	1.1	Manufacturer		HANGCHA GROUP CO.,LTD.
	1.2	Manufacturer’s type designation		CQD12-AC5H*	CQD14-AC5H*	CQD16-AC5H*	CQD20-AC5H*
	1.3	Drive:electric(battery or mains),diesel,petrol,fuel gas		Electric	Electric	Electric	Electric
	1.4	Operator type:hand,pedestrian,standing,seated,order-picker		Seated	Seated	Seated	Seated
	1.5	Rated capacity/rated oad	Q(kg)	1200	1400	1600	2000
	1.6	Load centre distance	c(mm)	600	600	600	600
	1.8	Load distance,centre of drive axle to fork	x(mm)	269	269	269	344¹
	1.8.1	Load distance,centre of drive axle to fork,mast reached forward	x1 (mm)	221	221	221	221
	1.9	Wheelbase	y(mm)	1460	1460	1460	1535
Weight	2.1	Service weight(incuding battery)	kg	3407¹)	3407¹	3407¹)	3458¹)
hTaysrsises, c	3.1	Tyres:solid rubber,superelastic,pneumatic,polyurethane		Polyurethane	Polyurethane	Polyurethane	Polyurethane
	3.2	Tyre size,front		0343×140	0343×140	0343×140	0343×140
	3.3	Tyre size,rear×2		0330×100	0330×100	0330×100	0330×100
	3.5	Wheels,number front /rear(x=driven wheels)		1×12	1×/2	1×/2	1×/2
	3.7	Tread width,rear	b11(mm)	1168	1168	1168	1168
Dimensions	4.1	Tilt of mast/fork carriage forward/backward	a/β)	2/4	2/4	2/4	2/4
	4.2	Height,mast lowered	hi(mm)	2315	2315	2315	2315
	4.3	Free lift	hz(mm)	1350	1350	1350	1350
	4.4	Lift	h3(mm)	5000	5000	5000	5000
	4.5	Height,mast extended	h4 (mm)	5965	5965	5965	5965
	4.7	Height of overhead guard	h6(mm)	2200	2200	2200	2200
	4.8	Seat height/stand height	h7(mm)	1045	1045	1045	1045
	4.19	Overall length	lh(mm)	2509	2509	2509	25091)
	4.20	Length to face of forks	lz(mm)	1439	1439	1439	14391)
	4.21	Overall width	bi/bz(mm)	1270	1270	1270	1270
	4.22	Fork dimensions	s/e/l (mm)	40/122/1070	40/122/1070	40/122/1070	40/122/1070
	4.23	Fork carriage ISO 2328,cass/type A,B		ISO23282A	ISO23282A	SO23282A	IS023282A
	4.24	Fork-carriage width	b(mm)	942	942	942	942
	4.25	Distance between fork-arms	bs(mm)	382-746	382-746	382-746	382-746
	4.26	Distance between wheel-arms	b4(mm)	940	940	940	940
	4.28	Reach distance	l4(mm)	490	490	490	565¹)
	4.32	Ground clearance,centre of wheelbase	mz(mm)	68.5	68.5	68.5	68.5
	4.34.1	Aisle width for pallets 1000×1200 crossways	Ast(mm)	2871	2871	2871	28891)
	4.34.2	Aisle width for pallets 800×1200 lengthways	Ast(mm)	2938	2938	2938	2945¹)
	4.35	Turning radius	Wa(mm)	1725	1725	1725	1800
	4.37	Length acroSs wheel arms	I7(mm)	1895	1895	1895	1970
Performance data	5.1	Travel speed,laden/unladen	km/h	14/14	14/14	14/14	14/14
	5.2	Lift speed,laden/unladen	m/s	0.450/0.480	0.410/0.480	0.360/0.480	0.330/0.480
	5.3	Lowering speed,laden/unladen	m/s	0.510/0.330	0.510/0.330	0.510/0.330	0.510/0.330
	5.8	Max.gradeability,laden/unladen	%	12/15	12/15	11/15	10/15
	5.9	Acceleration time,laden/unladen(0-10m)	S	5.3/5	5.3/5	5.3/5	5.3/5
	5.10	Service brake		Electromagnetic	Electromagnetic	Electromagnetic	Electromagnetic
		Parking brake		Electric	Electric	Electric	Electric
Electric	6.1	Drive motor rating S260 min	kW	6.4 AC	6.4 AC	6.4 AC	6.4 AC
	6.2	Lift motor rating at S315%	kW	12.8AC	12.8AC	12.8AC	12.8AC
	6.3	Battery acc.to DIN 43531/35/36 A,B,C,no		DIN 43531 C	DIN 43531C	DIN 43531C	DIN 43531C
	6.4	Battery voltage,nominal capacity K5	V/Ah	48V/460Ah	48V/460Ah	48V/460Ah	48V/600Ah
	6.5	Battery weight	kg	939	939	939	9801)
		Battery dimensions	I/b/h(mm)	1223×355×784	1223×355×784	1223×355×784	1223×355×784¹
n dat	8.1	Type of drive control		MOSFET/AC	MOSFET/AC	MOSFET/AC	MOSFET/AC
	ditio	Manufacturer/Type		INMOTION/CURTIS	INMOTION/CURTIS	INMOTION/CURTIS	INMOTION/CURTIS
	10.1	Operating pressure for attachments	bar	150	150	150	150
	10.2	Oil volume for attachments(max)	I/min	65	65	65	65
